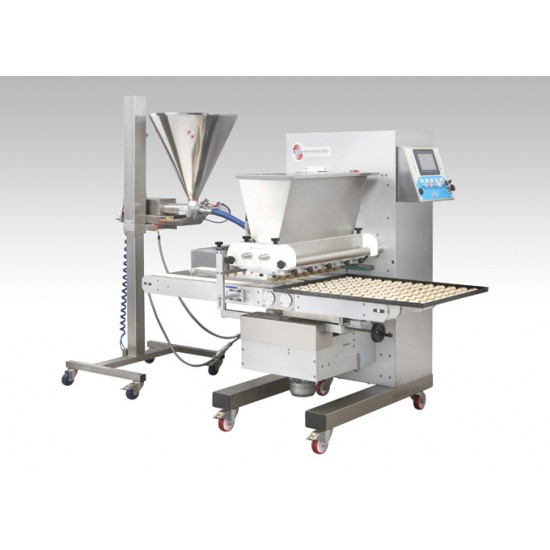

Delfin Biscuit Depositor Jucar 600 JAM

Delfin Biscuit Depositor Jucar 600 JAM

Commercial Biscuit, Cookie and Macaroon Depositor Equipment suitable for bakeries, confectionery and pastry shops. This Biscuit Making Machine is perfect for depositing Cookie Dough, Butter Cookies, Shortbread and Gingerbread, Cream Puffs, Eclairs, Macaroon, Meringue, Ladyfingers, Cupcakes, Muffins, Cakes, Brownies, and Chocolate Chip.

Delfin Srl is a company which is present since more than 20 years in the market of the production packing machines for food and non-food industry, and automatic dosing machines for cookies and biscuits

Biscuit making machine producing a wide variety of shapes within the limits and according to the standard kit of nozzles.

Video

Specifications:

• Rigging machine with all the mechanics on the back
  The main structure is painted steel and anti-corrosion aluminium
• Machine made with painted steel structure and milled aluminium plate on each side to allow for a robust and precise structure
• High-quality aluminium front aluminium plate for perfect anchorage of all mechanical details of the machine
• *Swivel wheels for easy moving of the machine
• Conveyor belt trays length 1200 mm
• Two towels carrying buns
• Automatic trays advancement with microwave trays detection
• Rollers guide aluminium sheets, complete with flanges and bearings
• Machine suitable for 60 x 80 x 2 cm pots
• Widely adjustable bread stand rail.
• Feed motorization with AC motor operated by inverter
• Face-up adjustment of the table by handwheel.
• Pouring automatic paste at the end of the casting
•  Extrusion head
• Tilted roller head.
• Nylon rollers with inner shaft in stainless steel Ǿ 98 mm with deep grooves
• Roller transmission via a 1.5 CV motor. controlled by "Mitsubishi" inverters, adjustable speed and dosage time, with anti-dripping cycle
• Bevel gears to the extruder rollers separated from the rollers themselves (ease of disassembly and high level of sanitation)
• Roller shafts supported by flanges and bearings
• Room with fully airtight rollers to avoid dirt out of the sides
• Total disassembly of the head without the use of keys (60 second disassembly time)
• Stainless steel hopper with capacity up to 40 litters
• Fixed 9-pin plate with fixing ring consisting of 9 smooth straight spikes and 9 straight-drawn spouts, 10 mm hole.
• Revolving plate for 9-shaped sizes consisting of 9 smooth straight spikes and 9 straight-drawn spouts, 10 mm hole.
